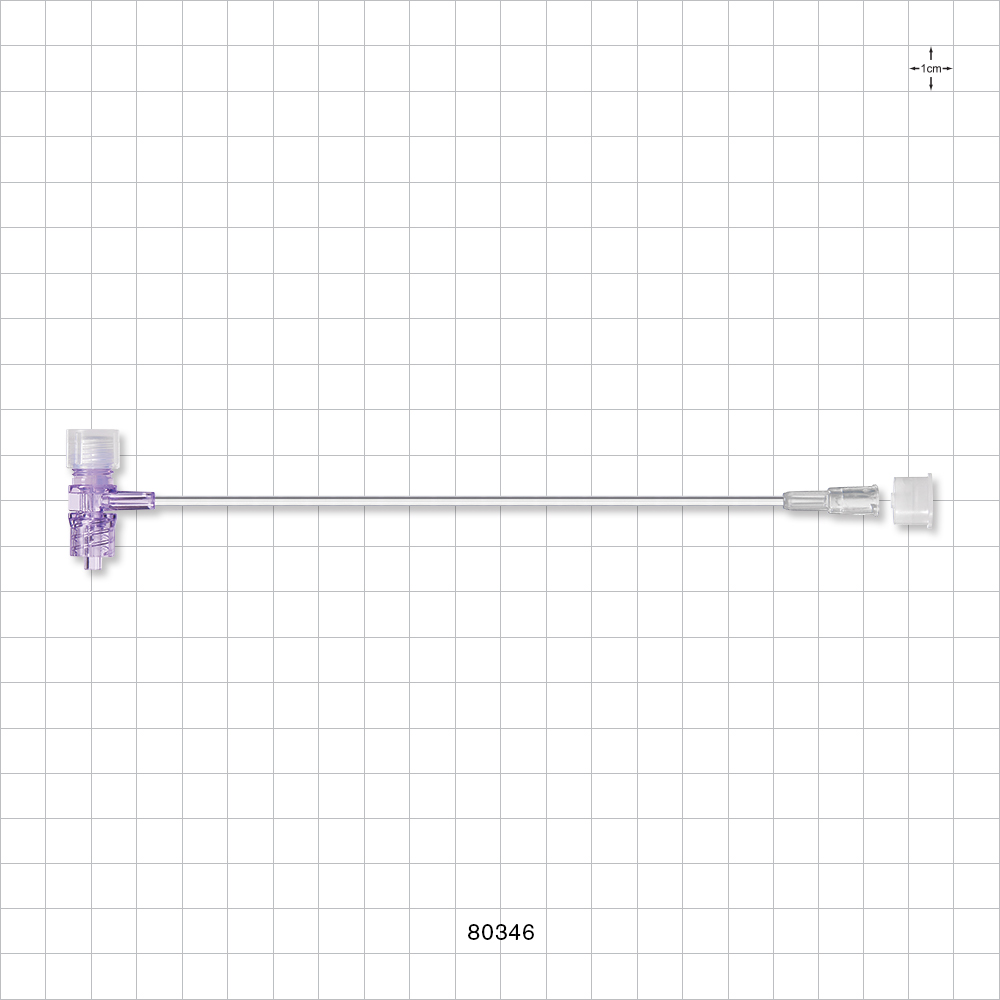

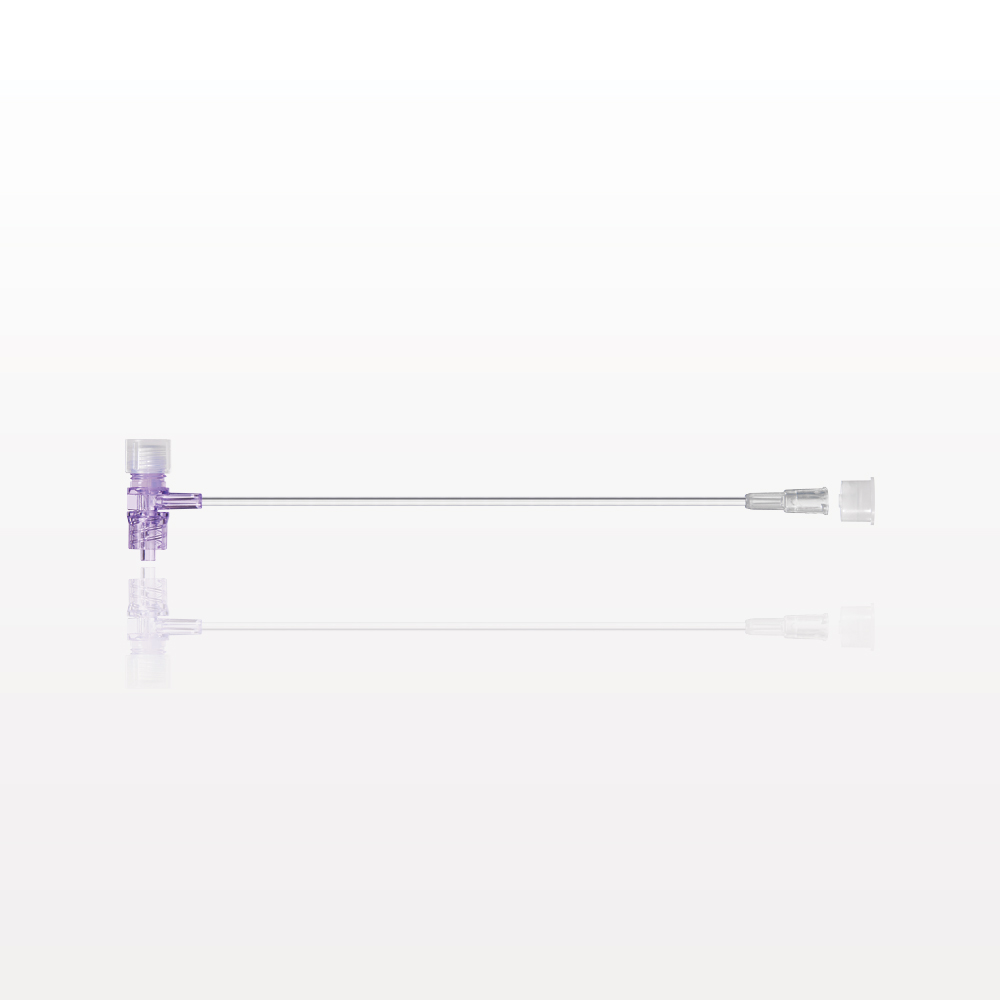

Extension Line, Tuohy Borst Adapter with Male Luer with Spin Lock to Female Luer Lock and Cap
80346
Technical Features
4 FR Gasket (0.053 inch, 1.35 mm); 0.06 inch ID Cap (1.5 mm); 6.5 inch Length (165 mm)
Materials
PC PP Silicone MABS LDPE PVC PC
Qosina offers a variety of valves and tuohy borst adapters that are in stock and ready for immediate delivery. Made with a tinted, gamma-stable, polycarbonate body, polypropylene cap and silicone gasket, Qosina part #80346 is a tuohy borst adapter designed to prevent the backflow of fluid. Equipped with an ABS female luer lock, LDPE cap and PVC tubing sideport, this tuohy borst can accommodate 4 FR tubes or instruments and is recommended for EtO sterilization. Qosina has a wide selection of tuohy borst adapters, as well as tuohy borst components that allow you to create your own custom configuration based on your application.
| Technical Detail | 4 FR Gasket (0.053 inch, 1.35 mm); 0.06 inch ID Cap (1.5 mm); 6.5 inch Length (165 mm) |
| Materials | PC PP Silicone MABS LDPE PVC PC |
| CAD Model Available | No |
| Manufacturing Environment Classification | ISO Class 8 / 100,000 / Grade D |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | No shelf life indicated by the supplier |
| Animal Derived Ingredients (BSE/TSE) | Certified Animal Derived Component Free (ADCF) |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Nanomaterials | Information Not Available |
| Pyrogens | Not Tested for Pyrogens |
| REACH SVHC | Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2024 January 23 (240 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Raw Material |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Elemental Impurities: Tested via ICH Q3D Standard | No ICH Q3D Testing Performed |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | No Extractables Testing Performed |
| Visible-Subvisible Particulate Claim | Information Not Available |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | No |
| Integrity Tested? | No |
The products in our inventory are intended solely for use as components for further manufacturing, processing or incorporation into a finished device. These products are not intended for use as finished devices. Customers are solely responsible for determining whether a Qosina component product is appropriate for customer’s intended use and for ensuring that the use of the component product is in compliance with applicable laws. Our components are not available for sale to hospitals, physicians, and pharmacists.
